Software tools for Maximum Likelihood Estimation

Lesson 1- TMB through RTMB

Jim Bence

22 November 2023

Outline: Part I

  • Introductions
  • Syllabus and my assumptions on background
  • Course organization
  • Philosophy and approach
  • Expectations
  • Break

Course intro

  • Welcome
  • Housekeeping
    • Zoom, github, lecture recordings, communication, etc.
  • Round-table introductions
    • Background, why are you here

Syllabus

Course organization

  • Each class is 2.5 h on zoom
  • Each class session will be a mix of lecture and work on exercises
  • Exercise work will be in breakout rooms
  • No formal homework but you may need to review/complete in class exercises between classes

My assumptions about your background

  • Some previous experience with statistics including basic idea of fitting models to data
  • Some previous use of R
  • Some programming (understanding of functions, loops, conditional statements)
  • Experience interpreting graphs
  • You can get by without all this background, but you should expect to put in more time

My background

  • BS in Biology University of Notre Dame
  • PhD in Ecology and Masters in Statistics at Univ CA, Santa Barbara (both
  • Worked on evaluation of environmental effects of San Onofre Nuclear Generating Station 1985-1989
  • Mathematical Statistician (Stock Assessment Scientist) at NMFS-NOAA Tiburon Lab 1989-1994
  • Faculty member at Michigan State University 1994- (retired from tenure stream position July 2023 - currently part time)

My philosophy on statistical modeling

  • Cookbook solutions rarely are adequate for real quantitative problems needed in ecology and resource management
  • In class we will solve simple problems the hard way
    • This will make solving hard problems easier and position you to produce better solutions (Royle and Dorazio 2008)
  • If you cannot write out your model you don’t know what you did!
  • Don’t get lost in coding.
    • A good model you understand is critical.

Software, implementation, website

  • We are primarily going to use R and RTMB
  • Recommend Rstudio
  • Lectures and code will be available through GitHub
    • You do not need to know how to use GitHub, but that is where you can find code and presentations

What is RTMB, why use it?

  • R package for maximum likelihood fitting of arbitrarily complex models that incorporate random effects
  • Nonlinear and non-normal models (within reason!)
  • RTMB uses Template Model Builder (TMB) and TMB was inspired by AD Model Builder (ADMB)

What is RTMB, why use it? A peak under the hood

  • Automatic differentiation (ADMB and TMB)
  • Laplace approximation to integrate out random effects (ADMB and TMB)
  • Automatic identification of parts of models that are connected (TMB)
  • TMB is much faster for models with random effects
  • No need for C++ coding (RTMB)
  • Major limitation – likelihood must be differentiable function of parameters and RTMB must “see” all the calculations in R

Expectations

  • Be kind
  • Make an honest effort to learn this stuff
  • Share your code
  • This course lies at the intersection of mathematics, statistics, ecology, and numerical computing
    • Failure is okay and to be expected

Some disclaimers

  1. Maximum Likelihood Estimation is powerful but not without drawbacks and limitations
  2. This is not a mathematical statistics course
  3. I don’t know everything
    • I will do my best to track down answers
  4. Please ask questions

Outline: Part II

  • Overview of statistical modeling and MLE
  • Building blocks
    • Probability, events, and outcomes
    • Random variables and random variates
      • Discrete versus continuous
    • Probability mass and density functions
    • Some common distributions
  • The Likelihood function and maximum likelihood estimation

A brief introduction to statistical modeling

  • This class is about model-based inference
    • Focus on the development of arbitrarily abstract statistical models
  • These models always contain:
    • Deterministic (i.e., systematic) components
    • Random (i.e., stochastic) components
  • We estimate model parameters - can be of direct interest, or used to calculate something of interest
    • We are interested in uncertainty of estimates (SEs and CIs)

Several example statistical models

  • Regression model
  • Hierarchical linear model
  • Complex age structured assessment model

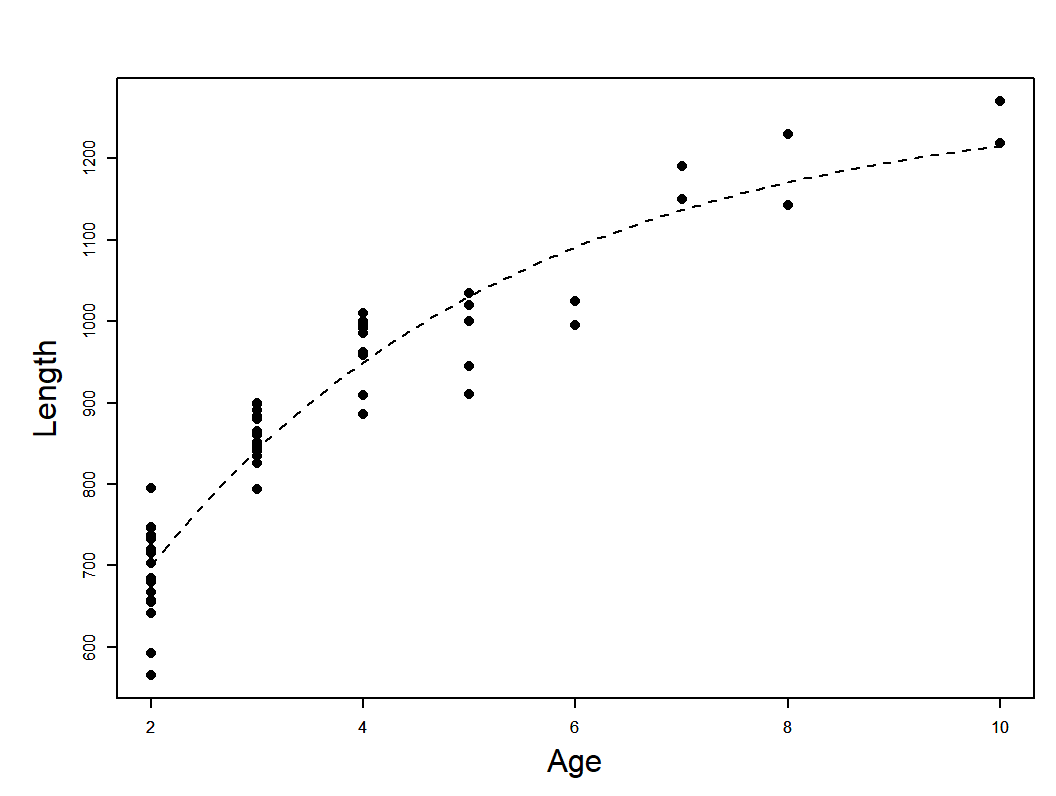

Regression model example

\[ y_{i}=f(\underline{\theta}, \underline{X})+\varepsilon_{i}\\ L_{i}=L_{\infty}\left(1-e^{-K\left(a_{i}-t_{0}\right)}\right)+\varepsilon_{i} \]

Data: T. Brenden unpublished. Photo: E. Engbretson, USFWS https://commons.wikimedia.org/w/index.php?curid=3720748

Hierarchical linear model example

  • Weight is power function of length multiplied by error
    • On log scale the relationship is linear with additive error
  • i represents ponds, j fish within ponds
  • Intercept and slope vary randomly among ponds, residual variance is pond specific
  • Y~N(a,b) means Y is normal, with mean a and variance b \[ \begin{array}{c} \log W_{i j}=a_{i}+b_{i} \log \left(L_{i j}\right)+\varepsilon_{i j} \\ a_{i} \sim N\left(\alpha, \sigma_{a}^{2}\right), b_{i} \sim N\left(\beta, \sigma_{b}^{2}\right), \varepsilon_{i j} \sim N\left(0, \sigma_{i}^{2}\right) \end{array} \]

State Space Catch at age model

\[ \begin{array}{l} \log N_{4, y}=\log N_{4, y-1}+ \\ \varepsilon_{y}^{(R)} ; \varepsilon_{y}^{(R)} \sim N\left(0, \sigma_{R}^{2}\right) \\ \log N_{a, 1986}=\log N_{4,1986-(a-4)}- \\ \sum_{4}^{a-1} \log \bar{Z}_{a}, 4<a \leq 9 \\ \log N_{a, 1986}=0, a>9 \\ \log N_{a, y}=\log N_{a-1, y-1}-Z_{a-1, y-1}, \\ 4 \leq a<A, \log N_{A, y}= \\ \log \left(N_{A-1, y-1} e^{-Z_{A-1, y-1}}+N_{A, y-1} e^{-Z_{A, y-1}}\right) \\ Z_{a, y}=M+\sum_{G=g, t} F_{a, y, G} \end{array} \]

State Space Catch at age model (continued)

\[ \begin{array}{l} F_{a, y, G}=q_{a, y, G} E_{y, G}, G=g, t \\ \log q_{y, G}=\log q_{y-1, G}+\varepsilon_{y}^{(G)} ; \varepsilon_{y}^{(G)} \sim \\ N\left(0, \Sigma_{G}\right), G=g, t \\ \boldsymbol{\Sigma}_{a, \tilde{a}}=\rho^{|a-\tilde{a}|} \sigma_{a} \sigma_{a}, 4<a \leq A, \\ 4<\tilde{a} \leq A \\ B_{y}^{(S p a w n)}=\sum_{a=4}^{A} m_{a, y} W_{a, y}^{(s p a w n)} \log N_{a, y} \\ C_{a, y, G}=\frac{F_{a, y, G}}{Z_{a, y}} N_{a, y}\left(1-\exp \left(-Z_{a, y}\right)\right), \\ \end{array} \]

Probability

  • Whole books about definitions and meaning.

  • I follow a frequentist definition for intuition, while recognizing that there is some logic to Bayesian claims of degree of belief

    • Frequentist definition: The long run proportion of of times an event occurs under identical conditions

    • Statisticians sometimes distinguish outcomes from events. Outcomes are really elementary events. Event might be catching a fish in 7 to 8 inch bin, outcome would be catch a fish and measure its length.

Basic properties (axioms) of probabilities

  • The sum of probabilites over all possible mutually exclusive events is 1.0 (So something will happen)

  • Probability of any given event is \(\geq\) 0 (and \(\leq\) 1)

  • The probability of the union of mutually exclusive events is the sum of their separate probabilities

    • \(P(A \cup B)=P(A)+P(B)-P(A \cap B)\)

if A and B independent \(P(A \cap B) = P(A)P(B)\)

Conditional probability

\[ P(A \mid B)=\frac{P(A \cap B)}{P(B)} \]

  • “|” read as “given or conditional on – Probability of A given B

  • Conditional probabilities recognize that the occurence of event B can provide information on whether event A will occur

  • Convince yourself that \(P(A \mid B)=P(A)\) if A and B independent

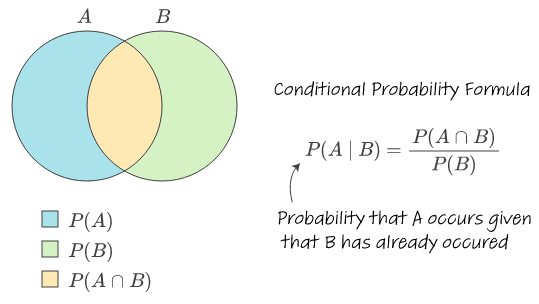

Conditional probability

stats.stackexchange.com/questions/587109

Random variables (words)

  • Technical definition is that they are functions that convert probability spaces for events/outcomes to numeric results.

    • Ironically they are neither random nor variables!

  • Less technically (but still techno speak!) they describe the numeric outcome of a random process. I.e., they are not a number (or vector/matrix of numbers) but rather the process of producing them.

  • A random variate is a particular numeric outcome

  • Text books say usually capital letters used for random variables and lower case for random variates.

Random variables: math expression for simple example (coin flip)

We flip a coin and call a heads 1 and a tails 0:

\[ \text{suppose } p=\operatorname{Pr}(Y=1) \\ \operatorname{Pr}(Y=1)+\operatorname{Pr}(Y=0)=1 \\ \operatorname{Pr}(Y=0)=1-p \]

  • Pr = probability
  • We could say the random variable Y has a Bernoulli distribution

Bernoulli probability mass function (pmf)

\[ \operatorname{Pr}(Y=y)=p^{y}(1-p)^{1-y} \]

  • The pmf (or pdf) is a function that calculates the probability given the random variate (\(y\) value) and the parameter(s) (here \(p\))

    \(y\) is observed datum

    • pmf for discrete outcomes

  • If this was a continuously distributed random variable we would use probability density function (pdf)

pmf and pdf notation

  • A conventional notation for this stuff is

\[ f(y \mid \theta) \]

  • Sometimes with subscript for random variable: \(f_Y(y \mid \theta)\)
  • often just: \(f(y)\)
  • Conditional bit indicates that the probability of an observed value \(y\) depends on parameter(s) \(\theta\) used to specify the distribution of the random variable \(Y\)
  • Notation for Benouilli random variable: \(f(y \mid \theta)=p^{y}(1-p)^{1-y}\)

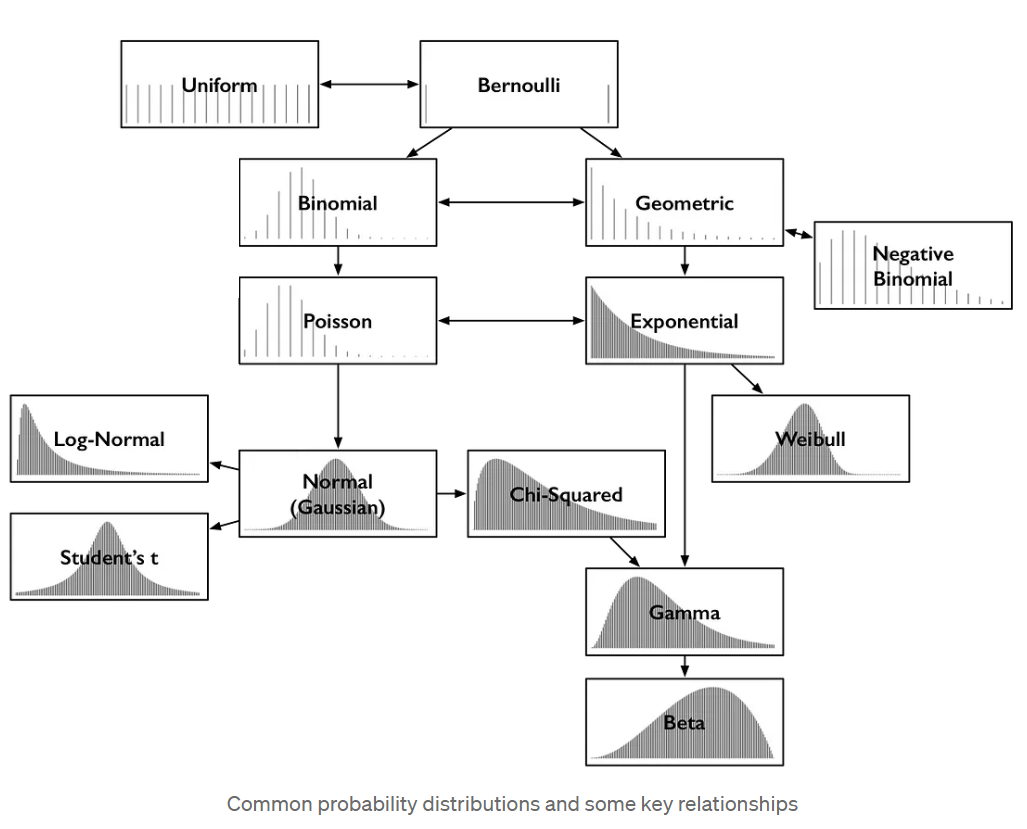

Some common statistical distributions

Figure Reference

More notation notes for everyone’s sanity

  • In general I will provide the pmf (or pdf) expressed as a function of \(y\) and the parameters of the distribution.

  • For example, will use \(y\sim \mathrm{N}(\mu, \sigma^2)\) to indicate a random variable \(Y\) is normally distributed with mean \(\mu\) and variance \(\sigma^2\)

  • In general regular font for scalars, bold for vectors and matrices

More notation

  • You might see it this way too:

\[ \operatorname{Normal}(y \mid \mu, \sigma^2)=\frac{1}{\sqrt{2 \pi} \sigma} \exp \left(-\frac{1}{2}\left(\frac{y-\mu}{\sigma}\right)^{2}\right). \]

Discrete versus Continuous random variables

  • Discrete means the set of possible outcomes is countable with each possible value having an associated probability (calculable from the pmf).

  • Continuous means not countable (generally this means there are infinite numbers of possible values between any two other possible values). Pr(y) for any particular y is 0. So we use a probability density function.

  • Intuition/common sense sometimes used to choose between the two. E.g., catch or CPUE often modeled as continuous

Probability density function

  • Pr(\(c_1\))=Pr(\(c_2\))=0 !

  • Area under the pdf function gives probability for interval

  • Pr(\(c_1<x<c_2\))=Pr(\(x<c_2\))-Pr(\(x<c_1\))

Cumulative distribution function

  • F(x)=Pr(X<x)

  • For continuous variables, the derivative of F(x) with respect to x is f(x) (the density)

    • Why? Does this make sense?

Joint probability density and mass functions

Vector of observed values, with elements having the same pdf/pmf or different ones and these random variables might be independent or not: \(f(x_1,x_2,...,x_k)=f(\mathbf{x})\)

Special case of each element representing an independent random variable: \(f(\mathbf{x})=f_{X_1}(x_1)f_{X_2}(x_2)...f_{X_k}(x_k)\)

Special special case of independent and identically distributed (iid) random variables: \(\mathbf{f}(\mathbf{x})=f(x_1 \mid\theta_1)f(x_2 \mid \theta_2)...f(x_k \mid \theta_k)=\Pi_{i=1}^{i=k} f\left(x_{i} \mid \theta_{i}\right)\)

These special cases very important for practical MLE work!

The likelihood function

  • No new math!!!

  • The likelihood function is just the joint pdf re-expressed as a function of the parameters: \(f(\mathbf{\theta}|\mathbf{x})\)

Maximum likelihood estimation

  • Adjust \(\mathbf{\theta}\) until \(f(\mathbf{\theta}|\mathbf{x})\) is maximized

  • The rest is “just” details :->

A numerical example

  • x ={10.72,7.23,10.07,8.62,8.55}
  • Each observation (x) independent from a common normal distribution with mean 10, variance 2 (i.e., they are iid)
  • Calculate the likelihood of these data, i.e., f(10.72)f(7.23)f(10.07)f(8.62)f(8.55) using R
  • Hints. The result is just a single number. You can calculate the pdf of f(x) for a normal distributionin R using the dnorm function. The dnorm function uses sigma (SD) not sigma squared (variance)
  • Time permitting - generalize as R function to calculate likelihood for any vector x, mean, variance.

Working with the log likelihood (prefered for numerical reasons)

  • Perhaps obviously, if you adjust parameters to maximize the log of the likelihood function this will also maximize the likelihood.

  • RTMB and most software minimizes the negative log likelihood rather than maximizing log likelihood (convention)

  • Working on the log-scale improves numerical performance.

    • The joint log likelihood for independent observations is the SUM (rather than product) of the individual log f(x) values

Negative log likelihood versus mu for five iid observations from a Normal distribution (known variance of 2)

NLL versus mu

The regression case

  • Observations assumed independent but not identically distributed.
  • The mean varies among observations and in this simple case variance is same for all observations: \(y_i\sim \mathrm{N}(\mu_i, \sigma^2)\)
  • Cannot estimate mean as a parameter for every observation
  • But can calculate it as function of parameters, e.g, : \(\mu_{i}=\alpha+\beta X_{i}\)
  • general message estimated parameters are not the same as the distributional parameters for the pdfs/pmfs
  • What are the model parameters?

Psuedocode for the regression problem

  • Specify \(\alpha\), \(\beta\), and \(\sigma^2\)

  • Calculate \(\mu_i\)

  • Calculate NLL

Search over different values of \(\alpha\), \(\beta\), and \(\sigma^2\) and repeat 1-3 until you find the values that minimize the NLL

Two ways to frame the regression model

\[ \begin{array}{l}y_{i}=\mu_{i}+\epsilon_{i}=\alpha+\beta * X_{i}+\epsilon_{i} \\\epsilon \stackrel{i i d}{\sim} N\left(0, \sigma^{2}\right)\end{array} \]

  • Previously we modeled mean, which was a distributional parameter. Now we write a model for the individual observations. We can write the likelihood in terms of the errors, or the observations - The two are equivalent!
  • Note but don’t worrying about. The standard model notation uses random quantities on the RHS but specifies the random variate on the LHS

Finding the MLE

  • Analytical solution (involves derivatives)

  • Grid search

  • Iterative searches

    • Non-derivative methods

    • Derivative methods (such as quasi-Newton)

Role of derivatives in finding MLEs

NLL as function of single parameter with derivatives

  • Derivatives of NLL with respect to parameters zero at minimum

  • Second derivatives of NLL with respect to parameters are positive at minimum

Grid search exercise

  • For the sample of five observations we used before find the MLE estimate of the mean assuming the variance known equal to 2 by conducting a grid search

  • Time permitting find MLE estimates of both the mean and variance at the same time by grid search

Properties of MLEs

  • Terminology: ML Estimator versus ML Estimate

  • Ideal estimator is lowest variance among unbiased estimators

  • MLE not guaranteed to do this!

  • MLEs are consistent, meaning estimates will become closer to correct values and sample sizes increase

    • Asymptotically unbiased

Errors get smaller with more data

Familiar example of bias for an MLE

  • MLE for variance of normal random sample: \(\hat{\sigma}^{2}=\sum\left(x_{i}-\hat{\mu}\right)^{2} / k\)

  • Expected value: \(E(\hat{\sigma}^{2})=\frac{k-1}{k} \sigma^{2}\)

  • Standard (unbiased) estimator: \(\hat{\sigma}_{u}^{2}=\sum\left(x_{i}-\hat{\mu}\right)^{2} /(k-1)\)
